QPE command-line tools

The QPE submodule has three easy to use command-line tools

qpe_compute
qpe_plot
qpe_evaluation

qpe_compute

Computes the QPE estimates using the randomForest algorithm for a given time interval outputting the results in the form of a standard 640 x 710 pixels Cartesian map. Currently the output is written in binary format without any metadata.

qpe_compute [options]

Options:

-h, --help: show this help message and exit
-s START, --start=START: Specify the start time in the format YYYYddmmHHMM
-e END, --end=END: Specify the end time in the format YYYYddmmHHMM
-o OUTPUT, --output=OUTPUT: Path of the output folder, default is current folder
-c CONFIG, --config=CONFIG: Path of the config file, the default will be default_config.yml in the qpe module
-m MODELS, --models=MODELS: Specify which models you want to use in the form of a json line, the models must be in the folder /ml/rf_models/, for example ‘{“RF_dualpol”:”dualpol_model_BC_raw.p”}’, please note the double and single quotes, which are required

The files will be written in the output folder, and a subfolder will be created for every model passed with the -m flag. For example ‘{“RF_dualpol”:”dualpol_model_BC_raw.p”,”RF_hpol”:”hpol_model_BC_raw.p”’, will create two subfolders RF_dualpol and RF_hpol.

The configuration file must be written in YAML, the default file has the following structure:

TMP_FOLDER: '/scratch/wolfensb/'
KDP_PARAMETERS:
    RMIN : 1000.
    RMAX : 50000.
    RCELL : 1000.
    ZMIN : 20.
    ZMAX : 40.
    RWIND : 6000.
SNR_THRESHOLD: 3
ZH_THRESHOLD: 7
VISIB_CORR:
    MIN_VISIB: 37
    MAX_CORR: 2
SWEEPS: 'all'
RADARS: 'all'
# Post-processing
OUTLIER_REMOVAL: 1
GAUSSIAN_SIGMA: 0.5
ADVECTION_CORRECTION: 0
FILE_FORMAT: DN

The parameters are the following

TMP_FOLDER : A directory where to store intermediate files generated during the processing, this is not important and /tmp/ can be used as well
KDP_PARAMETERS : set of parameters used in the computation of KDP using the moving least-square method.
- RMIN : minimum range where to look for continuous precipitation, see pyart code
- RMAX : maximum range where to look for continuous precipitation, see pyart code
- ZMIN : minimum reflectivity to consider it a rain cell, see pyart code
- ZMAX : maximum reflectivity to consider it a rain cell, see pyart code
- RWIND : size of the moving window in meters used in the PSIDP filtering and KDP estimation, see pyart code
SNR_THRESHOLD : minimum SNR in dB below which the radar data is masked
ZH_THRESHOLD : minimum ZH below which radar data is masked
VISIB_CORR : set of parameters for visibility correction
- MIN_VISIB : minimum visibility below which the data is masked
- MAX_CORR : maximum visibility correction for ZH (in linear)
SWEEPS : which radar sweeps (elevations) to use, e.g. [1,2,3,4] for the 4 first, ‘all’ uses all 20 sweeps
RADARS : which radars to consider, e.g. [‘A’,’D’], ‘all’ uses all five radars
OUTLIER_REMOVAL : if set to 1, a local outlier filtering will be applied (e.g. remove values with z-scores in 3 x 3 window above +3 or below -3)
GAUSSIAN_SIGMA : size in pixels of the Gaussian smoothing that is applied on the QPE product, if set to 0 no smoothing is used
ADVECTION_CORRECTION : if set to 1, the QPE will be corrected for advection using this method with two consecutive timesteps
FILE_FORMAT : the format of output files, either ‘float’, in this case it will be saved in binary format in float, ‘DN’, binary format but after conversion to bytes using the lookup table in constants.py SCALE_CPC or ‘DN_gif’, in gif format using the lookup table in constants.py SCALE_RGB

Warning

When defining the configuration file, it is highly advised to be consistent with the configuration file used to update the database, since the machine learning model will be trained on this particular setup. If you are not sure how you should setup these parameters always use the default file in /store/msrad/radar/rainforest/rainforest/qpe/default_config.yml.

Example

qpe_compute -s 201806112000 -e 201806112200 -m '{"RF_dualpol":"dualpol_model_BC_spline.p"}' -o /scratch/wolfensb/qpe_runs/20180611

qpe_plot

Plots a series of QPE realizations stored in different subfolders within a main folder (as given by qpe_compute), using a custom colorscale, where low precipitation intensities are displayed in linear scale and high precipitation intensities in logarithmic scale.

qpe_plot [options]

Options:

-h, --help: show this help message and exit
-i INPUT, --inputfolder=INPUT: Path of the input folder
-o OUTPUT, --outputfolder=OUTPUT: Path of the output folder
-s START, --start=START: Specify the start time in the format YYYYddmmHHMM, optional: if not provided entire timerange in input folder will be plotted
-e END, --end=END: Specify the end time in the format YYYYddmmHHMM, optional: if not provided entire timerange in input folder will be plotted
-S SHAPEFILE, --shapefile=SHAPEFILE: Whether or not to overlay the shapefile of swiss borders, default is True
-f FIGSIZE, --figsize=FIGSIZE: Size of figure width,height in inches, e.g. 5,10, default is automatically chosen depending on how many QPE fields are to be plotted
-x XLIM, --xlim=XLIM: Limits in the west-east direction, in Swiss coordinates, e.g. 100,300, default is 400,900
-c CBAR, --cbar=CBAR: Orientation of the colorbar, either ‘vertical’ or ‘horizontal’, default is ‘horizontal’
-y YLIM, --ylim=YLIM: Limits in the south-north direction, in Swiss coordinates, e.g. 500,700, default is 0,350
-d DISPLAY, --display=DISPLAY: Specify how you want to display the QPE subplots as a comma separated string, e.g 2,1 will put them on 2 rows, one column. Default is to put them in one row
-t TRANSITION, --transition=TRANSITION: Precipitation intensity at which the colormap changes (purple for lower intensities, rainbow for larger intensities), default is 10
-v VMIN, --vmin=VMIN: Minimum precip. intensity to display, default = 0.04
-V VMAX, --vmax=VMAX: Maximum precip. intensity to display, default = 120
-m MODELS, --models=MODELS: Specify which models (i.e. subfolders in the qpefolder you want to use, default is to use all available, must be comma separated and put into quotes, e.g. ‘dualpol,hpol,RZC’

Example

qpe_plot -i '/scratch/wolfensb/qpe_runs/20190610/'  -o '/scratch/wolfensb/' -V 50 -t 3 -d '1,2' -m 'RZC,CPC'

qpe_evaluation

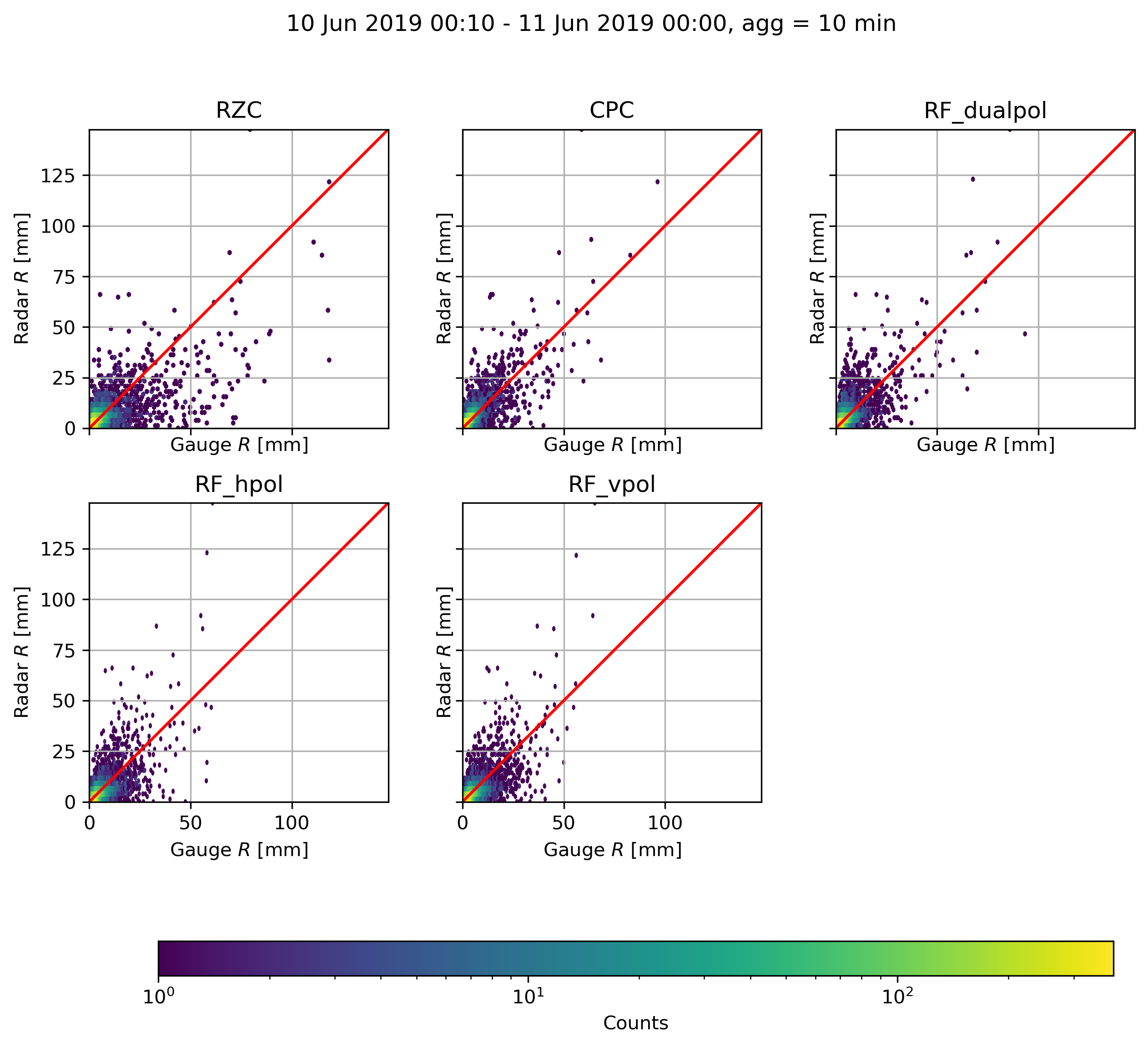

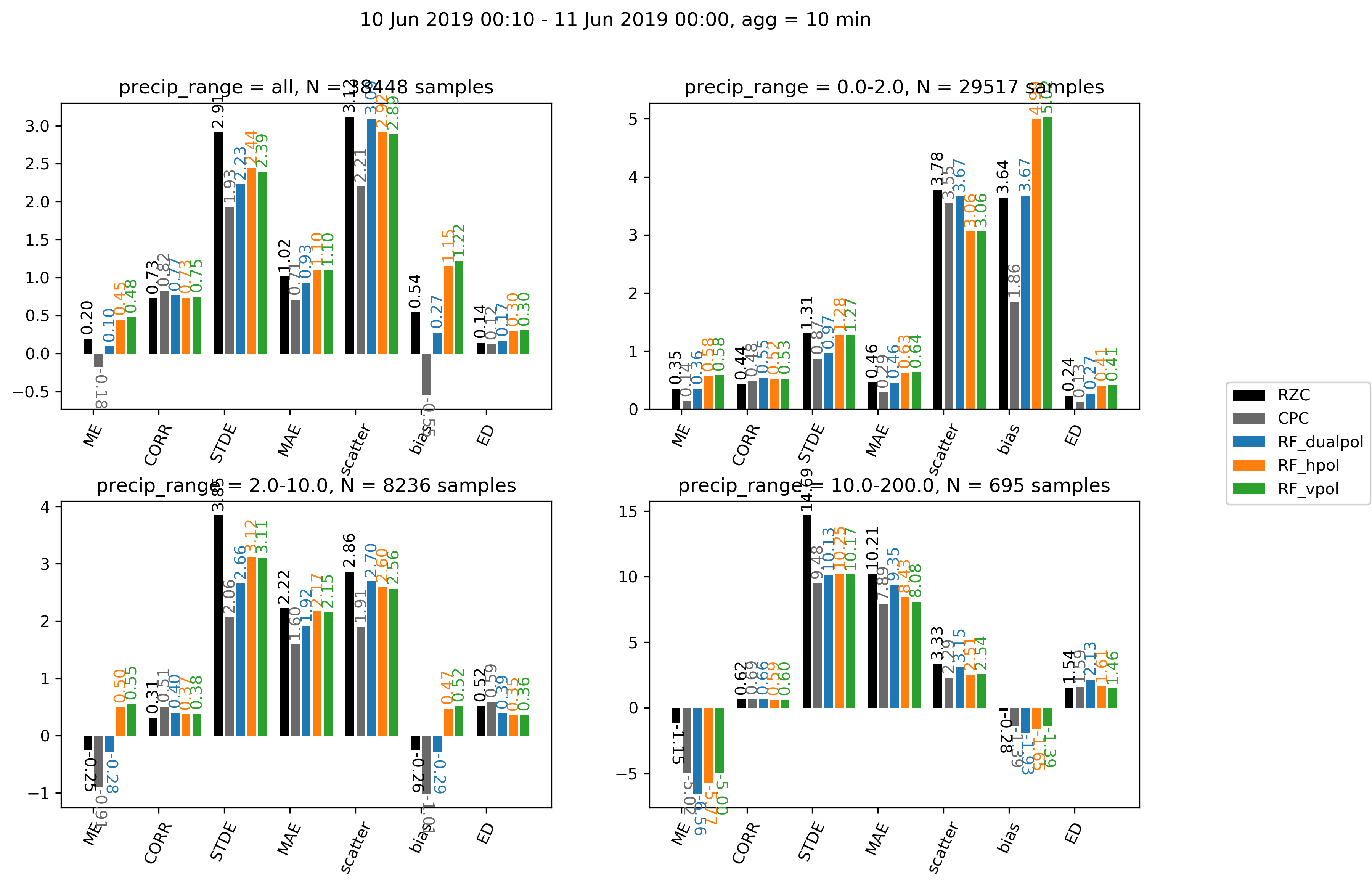

Plots a series of evaluation scores using gauge as reference for all QPE realizations stored in different subfolders within a main folder (as given by qpe_compute).

qpe_evaluation [options]

Options:

-h, --help: show this help message and exit
-q QPEFOLDER, --qpefolder=QPEFOLDER: Path of the folder where QPE data is stored
-g GAUGEFOLDER, --gaugepattern=GAUGEFOLDER: Path pattern (with wildcards) of the gauge data (from database) to be used, default = ‘/store/msrad/radar/radar_database/gauge/*.csv.gz’, IMPORTANT you have to put this statement into quotes (due to wildcard)!
-o OUTPUT, --output=OUTPUT: Path of the output folder
-s START, --start=START: Specify the start time in the format YYYYddmmHHMM, optional: if not provided entire timerange in qpe folder will be used
-e END, --end=END: Specify the end time in the format YYYYddmmHHMM, optional: if not provided entire timerange in qpe folder will be used
-b b10, --b10=b10: Specify which precipitation ranges you want to use at the 10 min resolution, as a comma separated string, e.g. 0,1,10,200 will separate the results, in the ranges [0,1),[1,10),[10,200(
-B END, --b60=END: Specify which precipitation ranges you want to use at the 60 min resolution, as a comma separated string, e.g. 0,1,10,200 will separate the results, in the ranges [0,2),[2,10),[10,200(
-m MODELS, --models=MODELS: Specify which models (i.e. subfolders in the qpefolder you want to use, default is to use all available, must be comma separated and put into quotes, e.g. ‘dualpol,hpol,RZC’

Example

qpe_evaluation -q /scratch/wolfensb/qpe_runs/20190806 -g '/store/msrad/radar/radar_database/gauge/*.csv.gz' -o /scratch/wolfensb/qpe_runs/plots_allstats -m "RZC, CPC, RF_dualpol, RF_hpol, RF_vpol"
